APC S10-UPS Power Conditioner With Battery Backup

By Jim Luck, November 6, 2009 8:47 pm

UPS Power Conditioner With Battery Backup

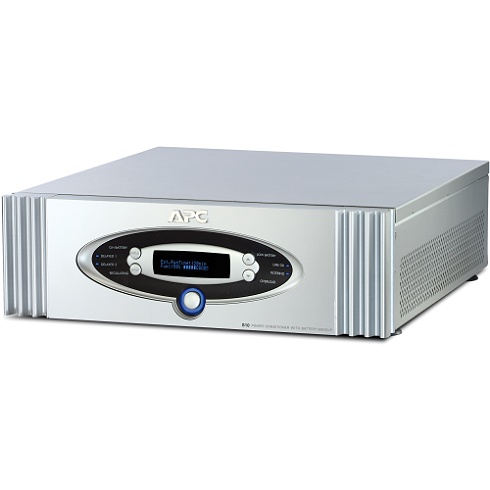

APC S10-UPS Power Conditioner With Battery Backup

This APC S10 Power Conditioner with back-up battery has a 700 W/1000 VA capacity that assures you have the power and protection you need.

Bulletproof Your Home Electronics World

Home electronics cost a lot of money, so it’s smart to protect your investment with an Uninterruptable Power Supply (UPS). The American Power Conversion (APC) 700 W/1000 VA capacity S10 Power Conditioner with Battery Backup protects your high performance, high value audio and video (A/V) system from damaging power surges, spikes, and lightning, as well as power outages. Pure sine wave battery backup power prevents interruptions, lost presets, missed DVR recordings, and lost media server data when the power goes out. Dataline surge protection jacks stop surges traveling over phone or data lines. Digital satellite systems, cable modems, and CATV coaxial cable lines are equally protected. With APC’s S10, your entire home entertainment experience is bulletproofed from damage or interruption as a result of bad power. APC’s S10 lets you enjoy your home theater experience with the peace of mind that performance is optimized and protection is guaranteed.

One blip in your power can be ruinous. If there’s a surge or even momentary outage, you can lose practically your entire home theater set-up. Not only is your home theater at risk, but so are music systems and computer hard drives.

Automatic Power Regulation Is The Answer

Thankfully, an APC UPS gives you enough time to shut everything down properly when there’s a power problem. If the power goes outside this range, the battery backup kicks in to keep your system safely up and running.

The Problem With Power

Numerous electric-powered machines aid in business and household tasks, as well as entertain and inform us. What was built years ago for powering factories producing manufactured goods is struggling to provide continuous, adequate power to sensitive electronics processing valuable information.

What Is A Power Event?

Sags, surges, noise, spikes, blackouts . . . . For computer users, the surge gets in through the AC outlet or phone lines. The APC S10 features a 700 W/1000VA output capacity with battery backup and adjustable voltage sensitivity. Additional features include pure sine wave backup battery output, sequential turn on/off, isolated filter banks, and dataline surge protection. If the unit is also protecting a home computer, the software will automatically save files and gracefully shutdown the operating system if the S10 is about to shutdown due to a low battery condition.

Never Heard Of APC?

From corporate data centers to home offices to home theaters, APC is highly regarded as an innovator, designer, and manufacturer of quality power protection solutions. Multiple R&D centers, along with APC-owned and controlled factories ensure APC solutions are the safest, most advanced, and reliable products available. Front Display Panel Bezel, PowerChute Personal Edition Software CD-ROM, Rack-mount kit (rails, ear brackets, screws, instruction sheet), USB interface cable, three coaxial patch cables, DC trigger cable, telephone patch cable, input power cord, Equipment Protection Policy Sheet, Owner’s Manual.

Comparison Specifications

Output Power Capacity: 700 W/1000 VA
Main Operations Input Voltage: 90-140 V
Input Frequency: 50/60 Hz +/- 3 Hz (Auto Sensing)
Maximum Input Current: 12 A
Output Voltage/Frequency: 120 V/47-63 Hz (Synced To Mains) With Automatic Voltage Regulation
Let-Through Voltage: < 40 V (Exceeds UL 1449 Standard)
Transfer Time: 2-4 ms
Surge Energy Rating: 3060 Joules
Estimated Backup Runtime (Half/Full Load): 27.4/9.9 Mins.
Noise Filtering: Full Time Multi-Pole, Zero Clamping Response Time, 0.7% IEEE Surge Let-Through

Additional Specifications

Data Protection: Modem/Fax Protection (RJ-11), Cable Modem/Video, Coaxial Video/Cable
Protected Outlets: 12 (NEMA 5-15R Polarizied, Grounded, 3-Prong Typical Household)
Control Panel: Multi-Function LCD Status And Control Console
Alarms: Audible And Visible Alarms With Configurable Delays
Data Port: USB
Battery: Maintenance-Free Leakproof Lead Acid With Suspended Electrolite
Typical Recharge Time: 8 Hours
Battery Output Waveform: Pure Sine Wave
Output Voltage Distortion: < 3%
Unit Efficiency At Full Load: 90 %
